Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. SIMGOT EW300 IEM Merchant video

The EW300 series, created by SIMGOT Acoustic Laboratory, challenges and combines three different principles of sound generating drivers. The innovative acoustic framework and scientific tuning technology make the EW300 a benchmark for entry-level products.

1DD+1PLANAR+1PZT in Each Side 1 Dynamic Driver+1 Planar Magnetic Driver+1 Piezoelectric Ceramic Driver

The EW300 series have a luxurious configuration of 1 dynamic driver+1 planar magnetic driver+1 piezoelectric ceramic driver in each side. The acoustic characteristics of different types of sound generating drivers in different frequency ranges have been taken into account. The three-in-one matrix acoustic architecture is skillfully constructed, and the frequency response of each unit is meticulously adjusted and precisely controlled to achieve overall balance.

10mm Ceramic Composite Diaphragm Dual-Chamber Dynamic Driver

Which is a low-midrange unit created by SIMGOT for Matrix Hybrid Multi-Unit series. The diaphragm uses a 10mm flexible and high elasticity suspension system and a long stroke design of ceramic-like composite diaphragm combined with a strong magnetic circuit dual chamber system. Provides a low distortion and high transient quality sound base, presenting a natural, real sense of presence and full-bodied mellow delicate vocals.

6mm Annular Planar Magnetic Driver

EW300 series are different from the traditional hybrid unit program using a small volume of moving iron as a high-frequency unit, but the use of annular planar magnetic unit, can cover a higher frequency range. It has a natural advantage in the presentation of high-frequency tone and details. Combined with reasonable power distribution and crossover point design, can present rich high-frequency details listening, but also make high-frequency tone more natural.

Customized Multi-Layer PZT Driver

EW300 series will be placed in the rear cavity of the PZT metal cover position, through a large number of acoustic vibration experiments and the actual listening experience calibration, effectively eliminating the PZT “mechanical sound “. Retain its high-frequency, very high-frequency compensation, so that the headset’s full-frequency range is more superior, further expanding the sound field.

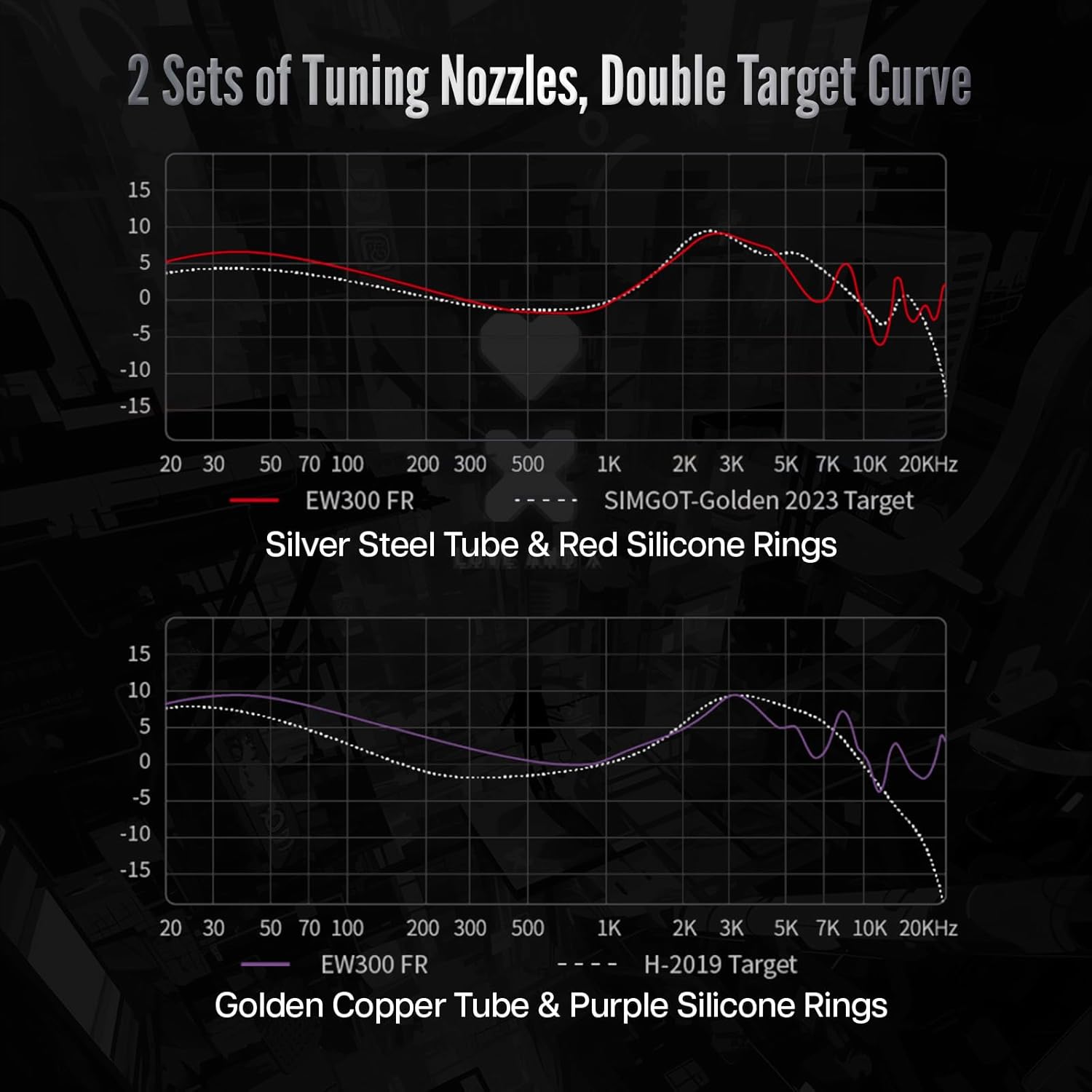

2 Sets of Tuning Nozzles, Double Target Curve Silver Steel Tube & Red Silicone Rings

SIMGOT-Golden 2023 target curve in maintaining three-frequency balance on the basis of the full release of resolution, vocals more emotional and breath sense, high-frequency airy sense of full. The interpretation of various styles of music are adapted.

Golden Copper Tube & Purple Silicone Rings

The H-2019 target curve is characterized by a balanced three products. Golden copper tube & purple silicone rings on top of that, it emphasizes the smoothness and smoothness of the low and high frequencies to further satisfy the needs of the gaming crowd in gaming scenarios.

High-Density Alloy and CNC Chamber

Adopting high-density alloy metal and CNC precision engraving technology to create a sturdy and pressure-resistant full metal body. Mirror surface plating process, presenting the meticulous luster and elegant temperament like a work of art. Adding color to the combination of music and beauty.

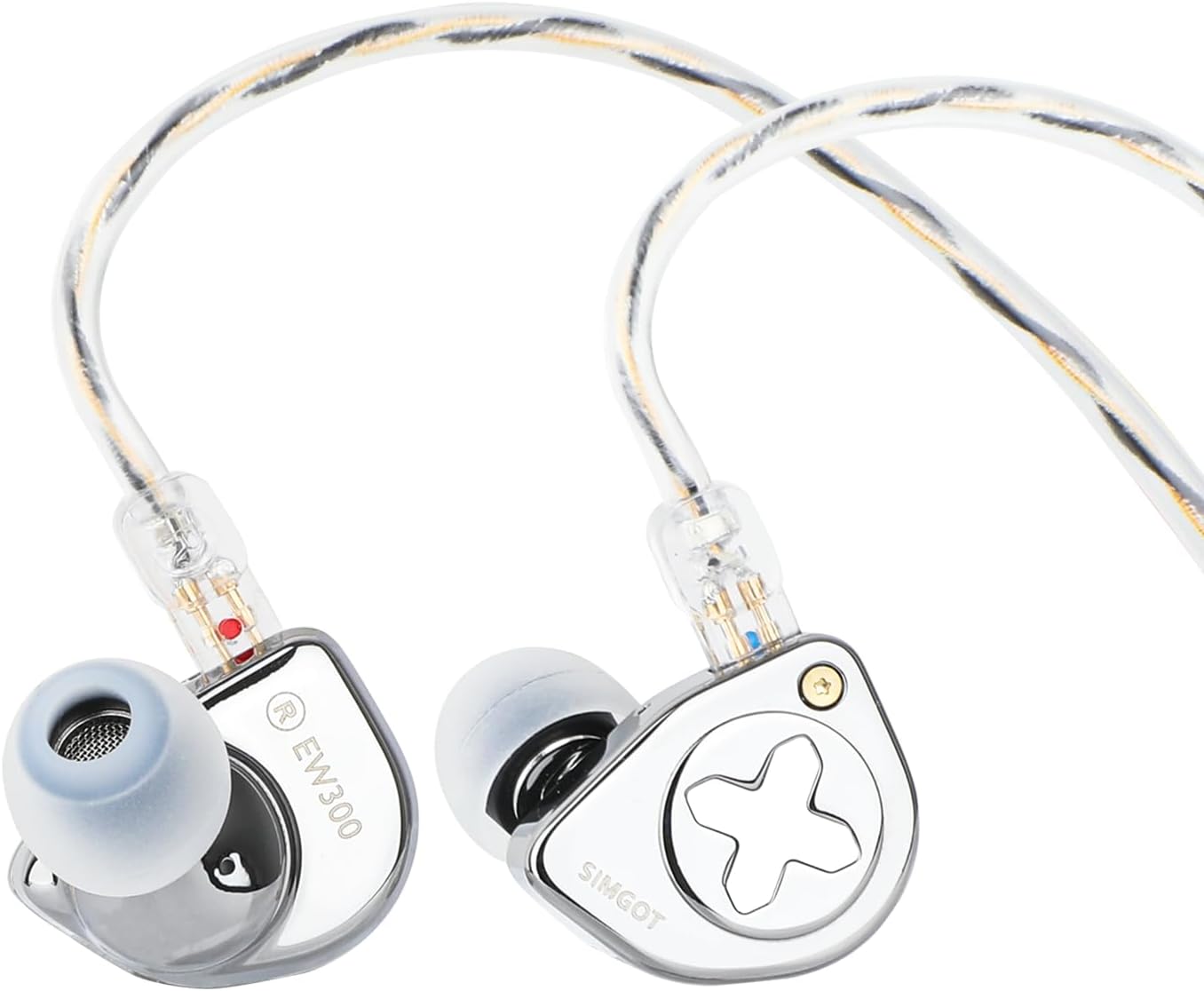

High-Purity OFC Silver-Plated Cable

EW300 series are equipped with standard 0.78mm 2pin high purity oxygen-free copper silver-plated cable to ensure more realistic signal transmission. The outer layer is made of transparent antioxidant PVC. The black and gold color of the cable is lightweight, flexible and durable.

SIMGOT EW300 Series Product Parameters

Linsoul Hot Product Recommendation

Add To Basket

Add To Basket

Add To Basket

Add To Basket

Add To Basket

Driver

1DD+1Planar+1PZT

10mm SCP Diaphragm Dynamic

10mm Dynamic Driver

10mm DLC Diaphragm Dynamic

5BA

Sensitivity

121 dB or 119 dB/Vrms (@1kHz)

126dB/Vrms (@1kHz)

123 dB or 124 dB/Vrms (@1kHz)

107 dB ± 3 dB/Vrms (@1kHz)

109±3 dB/Vrms (@1kHz)

Impedance

28Ω±15%(@1kHz)

16Ω±15% (@1kHz)

16Ω±15% (@1kHz)

32 Ω ± 15% (@1kHz)

26Ω

Audio Interface

0.78mm 2pin，3.5mm

0.78mm 2pin，3.5mm

0.78mm 2pin，3.5mm

0.78mm 2pin，3.5mm

Recessed 2pin，3.5mm

Microphone Options

✘

✔

✘

✘

✔

Featured In Ear Monitors
Kiwi Ears Canta

1DD+2Planar Hybrid Earphone

ZiiGaat x Fresh Reviews Arete

1DD+4BA Hybrid Earphone

TWISTURA D-Major

10mm Dual-Chamber Dual-Magnetic Dynamic Driver Earphone

TANGZU Wan’er S.G Studio Edition

10mm Dynamic Driver Earphone

Kiwi Ears KE4

2DD+2BA Hybrid Earphone

ZiiGaat x Jay’s Audio Estrella

2DD x 4BA Hybrid Driver in Ear Monitor

Product Dimensions ‏ : ‎ 0.1 x 0.1 x 0.1 cm; 260 g
Date First Available ‏ : ‎ 14 Aug 2024
Manufacturer ‏ : ‎ Linsoul
ASIN ‏ : ‎ B0DCZLRKZN
Item model number ‏ : ‎ SIMGOT EW300
Country of origin ‏ : ‎ China
Guaranteed software updates until ‏ : ‎ unknown
Best Sellers Rank: 1,390 in PC & Video Games (See Top 100 in PC & Video Games) 40 in PC Gaming Headsets
Customer reviews: 4.3 4.3 out of 5 stars (569) var dpAcrHasRegisteredArcLinkClickAction; P.when(‚A‘, ‚ready‘).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‚acrLink-click-metrics‘, ‚click‘, { „allowLinkDefault“: true }, function (event) { if (window.ue) { ue.count(„acrLinkClickCount“, (ue.count(„acrLinkClickCount“) || 0) + 1); } } ); } }); P.when(‚A‘, ‚cf‘).execute(function(A) { A.declarative(‚acrStarsLink-click-metrics‘, ‚click‘, { „allowLinkDefault“ : true }, function(event){ if(window.ue) { ue.count(„acrStarsLinkWithPopoverClickCount“, (ue.count(„acrStarsLinkWithPopoverClickCount“) || 0) + 1); } }); });
1DD + 1 PLANNER + 1 x HEIF HEIFI HEAD: The SIMGOT EW300 features a first-class setup with a dynamic driver, a planar driver and a piezoelectric ceramic driver on each side. Careful consideration was needed to balance the acoustic characteristics of these drivers. After extensive material adjustments and acoustic testing, an acoustic tri-matrix architecture has been developed. The dynamic driver with a 10 mm ceramic cone provides powerful, detailed bass and rich voices.
Easy to use: The EW300 offers an interchangeable nozzle design with two different tuning types. Each nozzle set is equipped with unique tuning systems and techniques. The innovative threaded connection allows for quick and easy nozzle replacement, allowing the user to effortlessly switch between different music styles. With personalized sound options, the EW300 offers two premium tuning options based on the SIMGOT-Golden2023 and H-2019 target curves.
The EW300’s golden copper nozzle and purple silicone ring have been specially designed for gamers and are tailored to gaming scenarios. With reference to the H-2019 curve, it is characterised by precise sound reproduction that makes it perfect for both audiovisual content and playback of games. With powerful bass, precise positioning and impressive spatial effects, it ensures that crucial sounds such as shots and footsteps are clearly recognised, giving you a competitive edge in the game.
THE KNOW AND WHISK SAFE: Bringing three different driver technologies under one hat is a big challenge. To tackle the complexity of the acoustic tri-matrix architecture, power distribution and crossover points, we used advanced finite element acoustic simulation. This approach allowed us to simplify system models and optimize key elements such as magnetic circuits, acoustic damping positions, air flow and piezoelectric ceramic drivers.
Made from high-strength alloy, the robust all-metal housing of the EW300, which is made of a high-strength alloy with the help of precision CNC technology, provides reliable protection for your music journey. The mirror coating gives it an artistic shine that highlights the elegant fusion of music and beauty. The EW300 is a blend of refined craftsmanship and ergonomic design. With comprehensive 3D ear contour analysis and expert ergonomic shaping, it provides a perfect fit.
