Product Description

Please check the mount fits your screen before purchasing.

This mount supports the following VESA screw hole spacing:

(A) Horizontal / horizontal: 75 mm, 100 mm.

(B) vertical/vertical: 75 mm, 100 mm.

Only if your device has the supported VESA hole spacing, will the mount fit the screen.

Important note:

All diagonal specifications in the item description/product packaging are approximate guidelines. When choosing the screen mount, the screen diagonal is not crucial, but the VESA standard (hole spacing on the TV).

This mount is also suitable for screens whose diagonals are smaller or larger than stated in the product description. All you have to do is ensure that the VESA hole spacing is within the area supported by the bracket and the max. load weight of the holder is not exceeded.

Checklist & Features

Measure VESA holes

Measure hole spacing / VESA

A: max. 100 mm.

B: max. 100 mm.

Support VESA standards (in mm):

75 x 75, 100 x 100.

Measure your screen

Measure screen width and height

C: min. 150 mm.

​D: min. 150 mm.

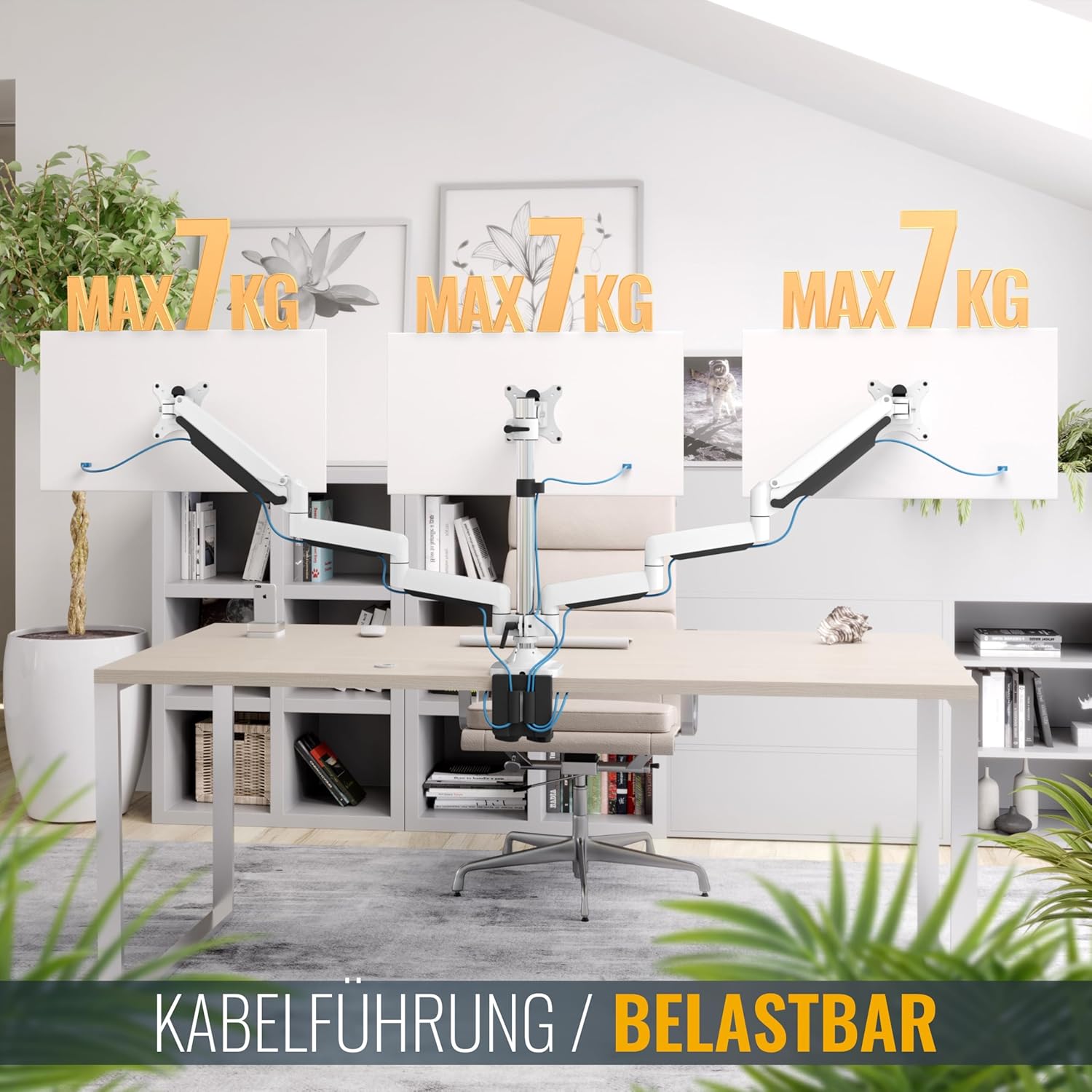

Maximum load:

Min. Approx. 1 kg – max. 7 kg per monitor (gas spring mechanism requires a minimum weight).

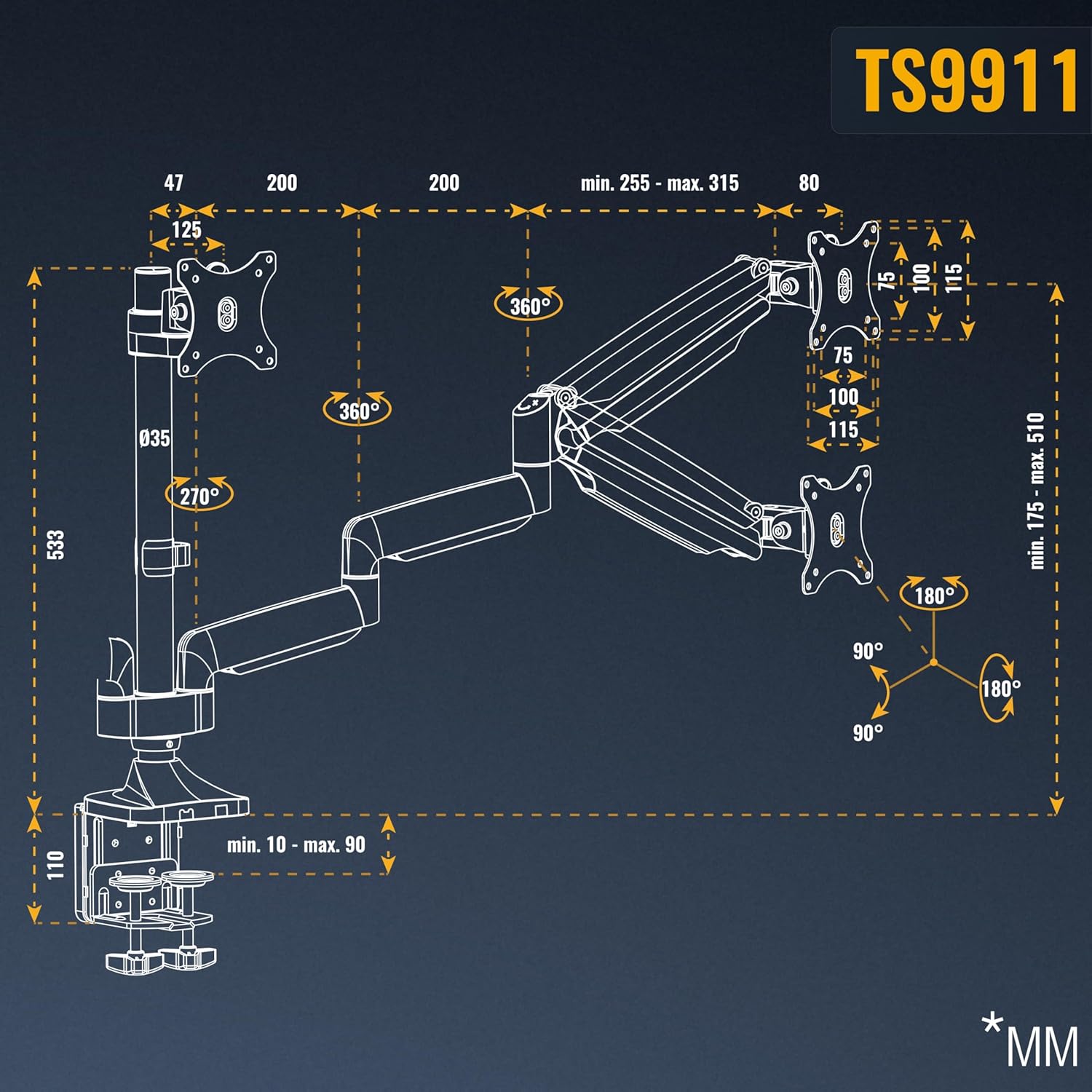

Product dimensions:

The dimensions of the holder can be found in the product sketch and/or product description.

This is just a sample image, the design of the mount may vary.

Cable connection check.

Please note the cable routing.

The mounting plate must not cover the ports on the back of your screen.

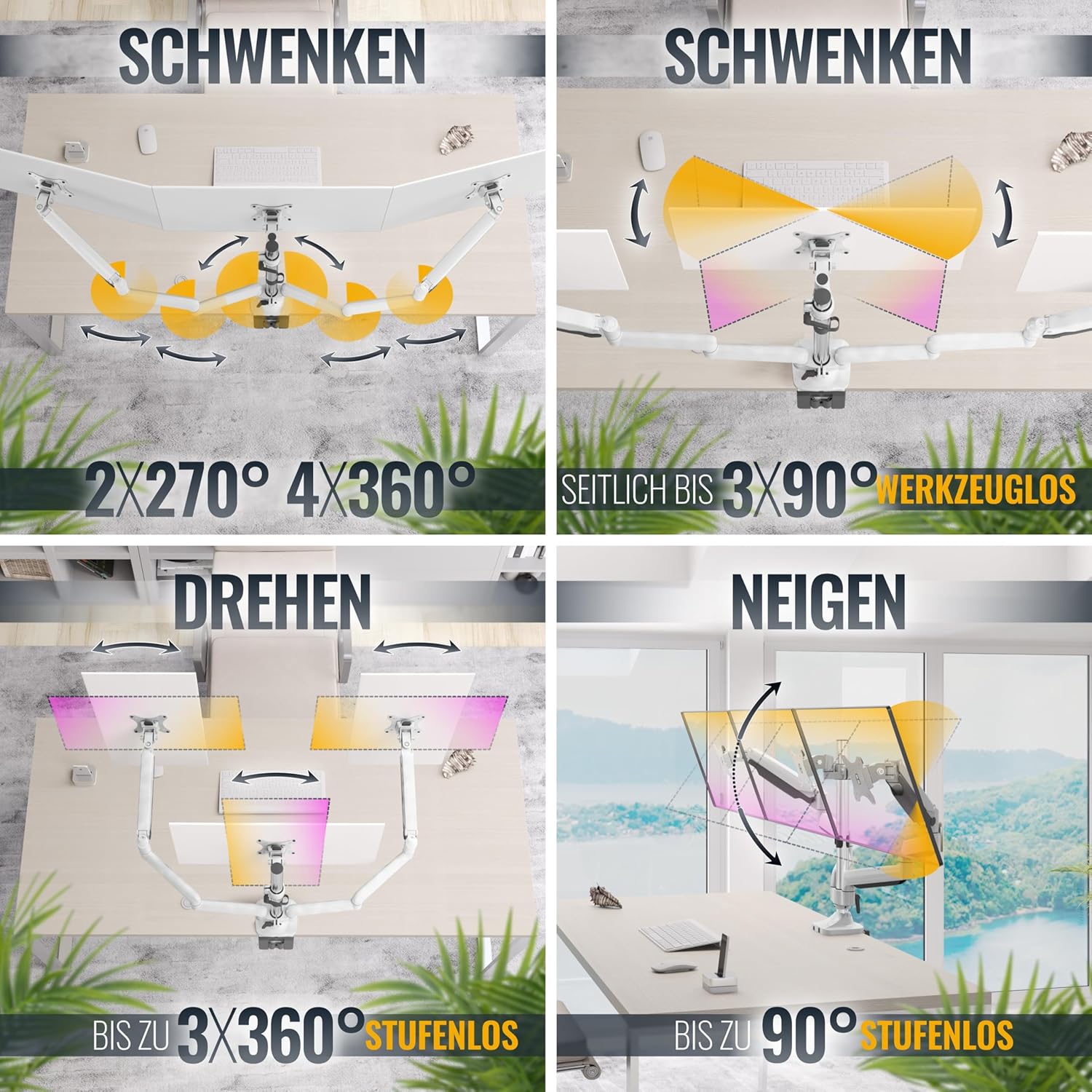

Functions:

Tilting

Up to +/-90° tilt per mounting plate up or down. Pleasant and relaxed viewing experience with multiple monitors at your workplace or home.

Swivelling

The mount can be freely swivelled up to +/- 90° (on the front plate joint) and +/-180° (on the arm joint) to the left or right. Align your screens at suitable viewing angles

Rotatable.

With the 180° pivot function, you can rotate your media to the correct position and refine the screen orientation. The setting can be adjusted at any time.

Cable Management

With the cable holders on the arms and on the table stand, you can harmoniously sort your cables along the way from the screen down to the socket. Elegant, space-saving and functional.

Box contents:

Included in the package for you: A lot of screws and various accessories. * The monitor is not included.

Monitor table mount. Complete mounting accessories: Hex key, washers, table clamp. Includes: Screw set: Screws (in various lengths). Installation instructions (English language

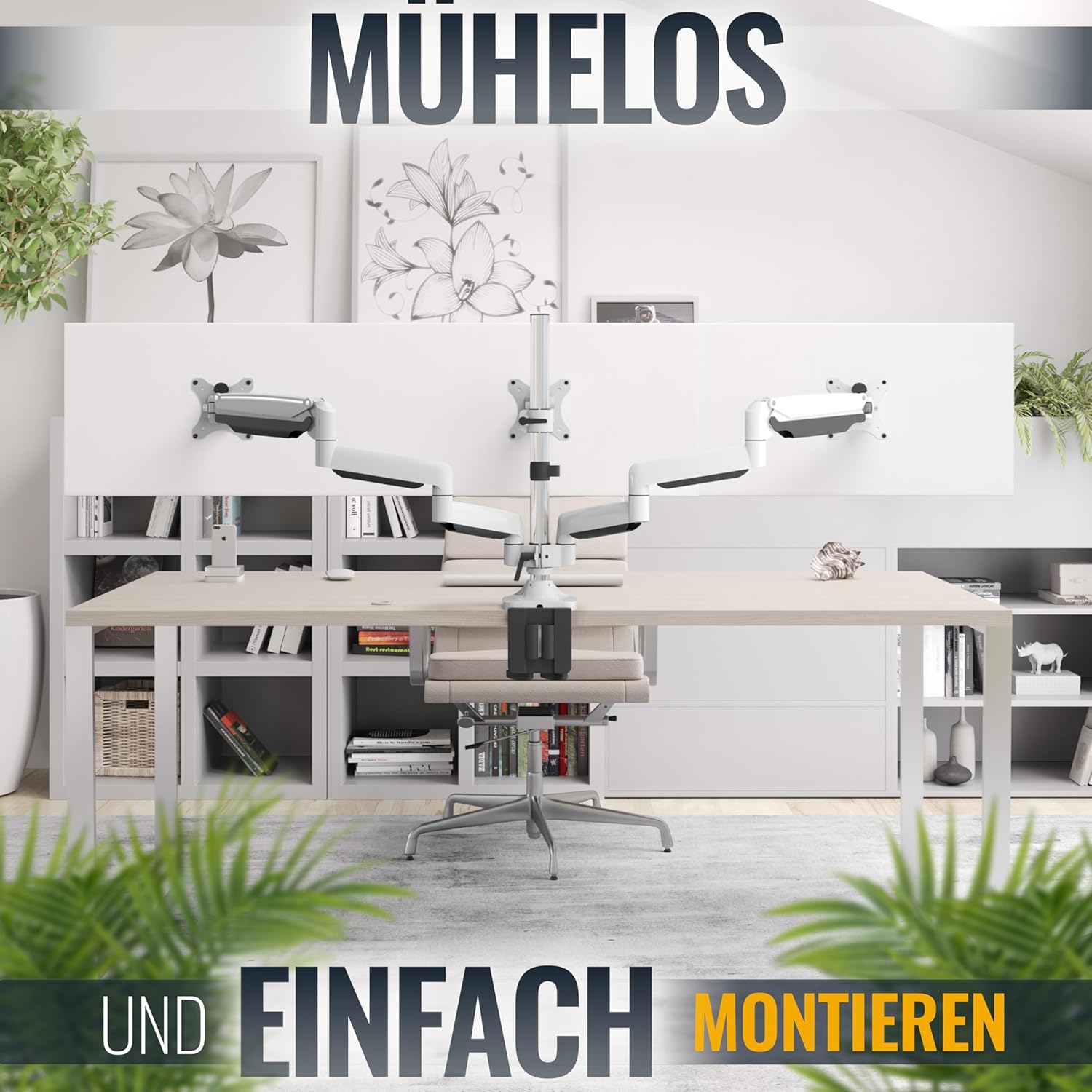

Assembly made easy!

Easy installation in just a few simple steps.

The graphically illustrated and described in German shows the function settings of the holder. Please check them in advance on our website. Brief description for assembly:

First, attach the rod of the holder with its base plate to a table edge via table clamp. Mount the swivel arms on the rod and the mounting plates on the back of the screens. Following slide the mounting plates into the joints and fix the screws. After adjusting the weight balance, place your screens in position using a gas lift with a light pressure.

Add To Basket

Add To Basket

Add To Basket

Add To Basket

Customer Reviews

4.3 out of 5 stars 839

4.3 out of 5 stars 1,381

4.3 out of 5 stars 1,381

3.8 out of 5 stars 181

4.2 out of 5 stars 71

4.2 out of 5 stars 179

Price

€159.99€159.99 €49.99€49.99 €69.99€69.99
— no data

— no data
€69.99€69.99

VESA standards.
75 x 75 mm | 100 x 100 mm. 75 x 75 mm | 100 x 100 mm. 75 x 75 mm | 100 x 100 mm. 75 x 75 mm | 100 x 100 mm. 75 x 75 mm | 100 x 100 mm. > Item accessories < for keyboards

Number of monitors/screen diagonal from… to
3 monitors (max. Width 760 mm) / approx. 38 cm – 74 cm (15 inches – 29 inches). 3 monitors (max. 600 mm width) / approx. 33 cm – 68 cm (13 inches – 27 inches). 3 monitors (max. 660 mm width) / approx. 33 cm – 69 cm (13 inches – 27 inches). 3 monitors (max. 660 mm width) / approx. 30 cm – 69 cm (12 inches – 27 inches). 2 monitors (max. Width 710 mm) / approx. 43 cm – 69 cm (17 inches – 27 inches). – no data

Maximum load capacity.
Min. 1 kg – max. 7 kg per monitor (minimum weight is required for proper functioning of the gas spring mechanism). Approx. 8 kg (each monitor recording). Approx. 8 kg (each monitor recording). Approx. 8 kg (each monitor recording). 6 kg (per monitor recording). 2 kg.

Swivel range
+/-90° (at the front panel joint), +/-180° (at the arm joint). 60° (30° on each side, depending on screen size). Approx. 8 kg (each monitor recording). 90° (45° on each side, depending on screen size). 20° per joint (10° on each side, depending on screen size). +/-20°.

Tilt range.
+/-90°. +/- 30°. +/- 45°. +/- 45°. +/- 15°. +/-15°.

Front plate rotation.
180°. 360°. 360°. 360°. 360°. – no data

Table clamp.
Min. 10 mm – max. 85 mm. Min. 10 mm – max. 80 mm. Min. 10 mm – max. 90 mm. – no data
Min. 10 mm – max. 82 mm. Desktop under-sink mounting.

Features:
Cable management, table edge mounting. Cable Management, Fully Movable Cable Management, Fully Movable Cable Management, Fully Movable Cable management, optional table edge mounting, monitor mounting plate height adjustable (min. 664 mm – max. 1124 mm), shelf height adjustable (min. 30 mm – max. 490 mm). Space-saving, fully movable.

Bar / arm / front plate dimensions W x D.
53.4 cm / max. 71.5 cm / 11.5 cm x 11.5 cm. 36 cm / 70.6 cm / 10 cm x 10 cm. 45 cm / max. 66.5 cm / 11.6 cm x 11.3 cm. 45 cm / max. 66.5 cm / 11.6 cm x 11.3 cm. 80.4 cm x 60.8 cm x 112.4 cm / 76.2 cm x 48 cm. 67 cm x 21.5 cm x 78.2 cm / 67 cm x 25.5 cm.

Other features:
Material: Steel | Net weight: 10.2 kg. Material: Steel | Net weight: 6.6 kg. Material: Steel, aluminium. Weight: 6.5 kg. Material: Steel, aluminium. Weight: 8.2 kg. Material: Steel, PVC, aluminium, plastic. Weight: 27 kg. Material: Steel, plastic. Colour: black/grey.

Is Discontinued By Manufacturer ‏ : ‎ No
Product Dimensions ‏ : ‎ 60.5 x 11.5 x 50.5 cm; 10.2 kg
Date First Available ‏ : ‎ 12 Jun 2018
Manufacturer ‏ : ‎ E.N.Z. Engineering GmbH
ASIN ‏ : ‎ B07DP43VPS
Item model number ‏ : ‎ TS9911
Country of origin ‏ : ‎ China
Guaranteed software updates until ‏ : ‎ unknown
Best Sellers Rank: 19,754 in Computer & Accessories (See Top 100 in Computer & Accessories) 230 in Computer Monitor Arms
Customer reviews: 4.3 4.3 out of 5 stars (839) var dpAcrHasRegisteredArcLinkClickAction; P.when(‚A‘, ‚ready‘).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‚acrLink-click-metrics‘, ‚click‘, { „allowLinkDefault“: true }, function (event) { if (window.ue) { ue.count(„acrLinkClickCount“, (ue.count(„acrLinkClickCount“) || 0) + 1); } } ); } }); P.when(‚A‘, ‚cf‘).execute(function(A) { A.declarative(‚acrStarsLink-click-metrics‘, ‚click‘, { „allowLinkDefault“ : true }, function(event){ if(window.ue) { ue.count(„acrStarsLinkWithPopoverClickCount“, (ue.count(„acrStarsLinkWithPopoverClickCount“) || 0) + 1); } }); });

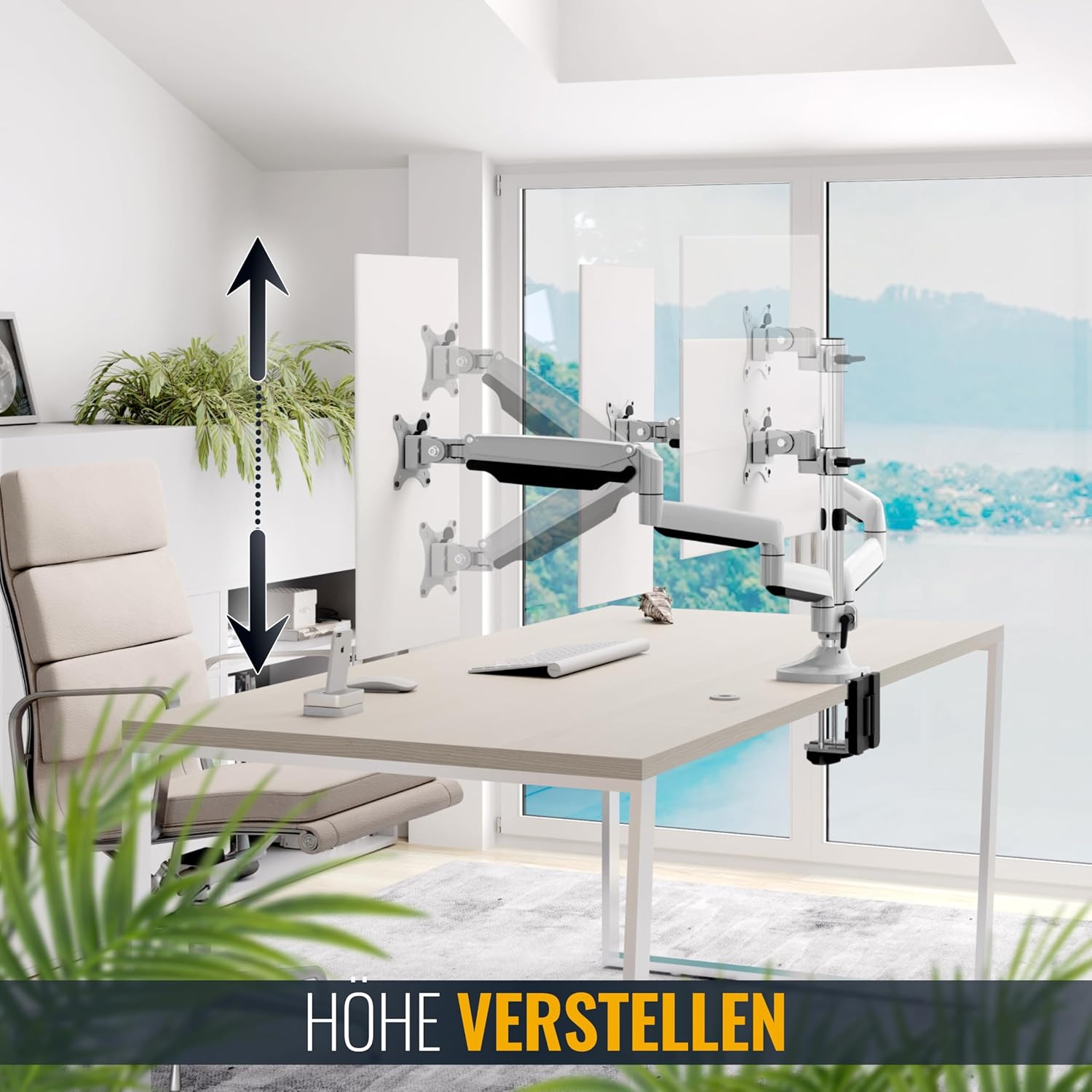

Functionality: front panels of the monitor desk mount can be rotated 180 degrees. Monitor stand swivel 180 degrees. Possible tilt +/- 90 degrees. The triple holder is height adjustable on the bar
Compatible with: VESA 75×75 100×100. 38cm/15″ 41cm/16″ 43cm/17″ 48cm/19″ 51cm/20″ 53cm/21″ 56cm/22″ 58cm/23″ 61cm/24″ 66cm/26″ 69cm/27″ inches
Capacity: Max monitor width 760 mm. Load capacity of the three-way monitor mount min. 1 kg – max. 7 kg per swivel arm. Minimum weight required!
Universal: suitable for all brands as well as curved screens – if VESA standard and the weight of the screen are supported
Includes: This universal screen stand is suitable for any flat screen with VESA standard. Also suitable for curved and touch screen. A multi-monitor screen mount ensures order on the writing table or gaming station in any home office
